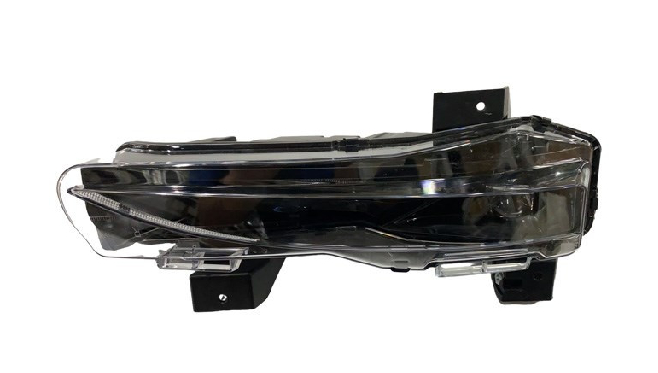

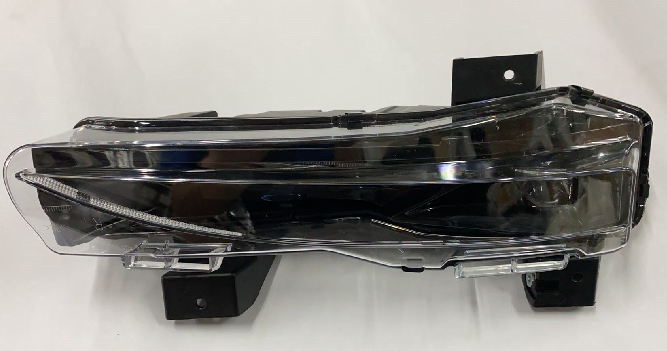

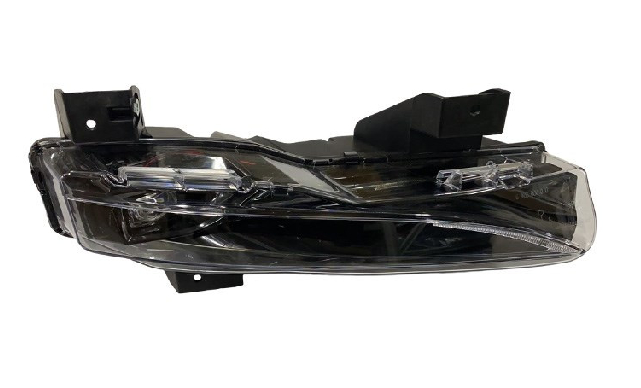

Front Fascia Lamp Assembly - Right Hand for Tesla Model X 2021 | 1649250-00-C

Product Overview

Key Specifications

Core Advantages for Your Model X

• Superior Illumination: The 6000K LED array produces bright, white light that closely mimics natural daylight, reducing eye strain during night driving. High beam mode extends visibility up to 150m, while low beam offers precise cutoff to avoid dazzling oncoming traffic.
• Multi-Function Integration: Combines low/high beams, DRL, and turn signal in one compact assembly—eliminating the need for separate modules and streamlining the front fascia design. The DRL features Tesla’s signature sequential lighting pattern for enhanced road presence.
• Durable Performance: Polycarbonate lens resists yellowing and cracking from UV exposure, while the aluminum heat sink efficiently dissipates LED heat—extending lifespan to 50,000+ hours (10x longer than halogen alternatives).
• Plug-and-Play Compatibility: Equipped with an OEM-matched 12-pin electrical connector, ensuring seamless integration with Model X’s lighting control module. No wiring modifications required—maintains full functionality of auto-leveling and adaptive lighting (if equipped).

Signs It Needs Replacement

• Light Malfunctions: Partial or complete failure of low/high beams, DRL, or turn signal (often caused by LED driver failure or wiring issues).
• Physical Damage: Cracked lens, broken housing, or water intrusion (visible fogging inside the assembly)—compromises performance and risks electrical shorts.
• Dim or Flickering Light: Degraded LED diodes or poor connections, reducing visibility and violating road safety standards.
• Error Messages: Illumination of "Front Light Malfunction" warning on the dashboard (indicates communication issues between the assembly and vehicle’s control system).

Installation Guidelines

• Professional Installation Recommended: Requires bumper removal for secure fitting. Steps include:
  1. Disconnect the 12V battery to prevent electrical damage.
  2. Remove the front bumper cover (follow Tesla’s factory procedure for 2021 Model X).
  3. Disconnect the 12-pin electrical harness from the old lamp assembly.
  4. Remove mounting bolts (4x M8 bolts, torque 8 Nm) and release retaining clips.
  5. Position the new 1649250-00-C assembly, reconnect the harness, and secure with bolts.
  6. Reinstall the bumper, reconnect the battery, and test all lighting functions.
• Calibration Note: For models with adaptive lighting, a Tesla service scanner is recommended to calibrate beam alignment post-installation.
• Pro Tip: Pair replacement with a new gasket set (included) to ensure a watertight seal against moisture intrusion.
