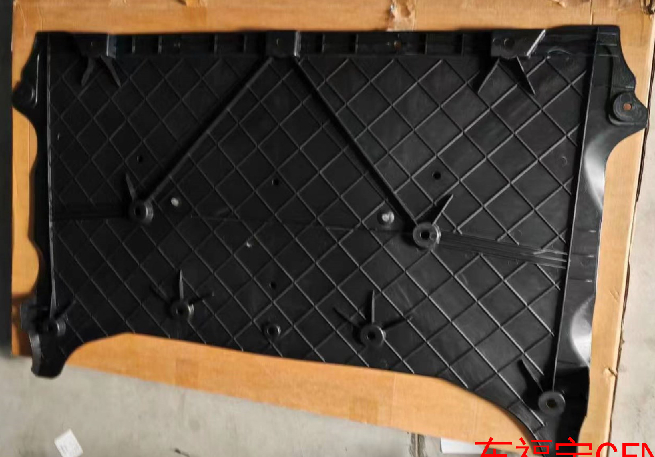

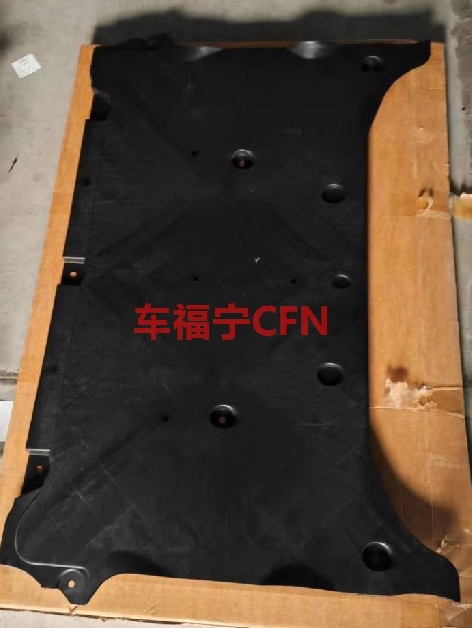

The Front Aero Shield 1585229 - 00 - E is a sophisticated and essential component engineered specifically for the 2021 Tesla Model S and Model X. This aero shield is not just an add - on; it's a crucial part of the vehicle's design that significantly impacts both performance and protection.
Designed with a focus on aerodynamics, the front aero shield plays a pivotal role in streamlining the airflow around the front of the vehicle. By reducing turbulence and drag, it allows the car to cut through the air more efficiently. This results in enhanced energy efficiency, which is particularly beneficial for electric vehicles like the Tesla Model S and Model X. With improved aerodynamics, you can expect better range, especially during highway driving when air resistance is a significant factor. The shield's shape and contour are meticulously crafted to direct air smoothly over and around the vehicle, minimizing the energy wasted in pushing against the wind.
This aero shield serves as a robust protective barrier for the vehicle's undercarriage and front - end components. It guards against flying road debris, such as stones, pebbles, and small branches, that could potentially cause damage to the vulnerable parts underneath the car. Whether you're driving on a freshly paved road or one filled with construction debris, the 1585229 - 00 - E shield acts as a reliable shield, preventing scratches, dents, and punctures. Additionally, it helps keep dirt, mud, and water away from sensitive components, reducing the risk of corrosion and premature wear.
Constructed from high - quality materials, the front aero shield is built to last. It can withstand the harsh conditions of daily driving, including temperature variations, humidity, and exposure to road salt in colder climates. The material is resistant to impact, ensuring that it doesn't crack or break easily when faced with minor collisions from road debris. Its durability means that you won't have to worry about frequent replacements, providing long - term value for your investment.
Engineered to be a precise fit for the 2021 Tesla Model S and Model X, this aero shield integrates seamlessly with the vehicle's existing bodywork. It attaches securely to the chin spoiler, subframe, wheel arch liners, front - end module, and body, following the exact contours of the car. The perfect fit not only ensures optimal performance but also maintains the sleek and stylish appearance that Tesla vehicles are known for. There's no need for modifications or adjustments, making installation straightforward.
- Vehicle Preparation
- If your vehicle is equipped with air suspension, it is crucial to activate “jack mode” before lifting the vehicle. Failure to do so can lead to serious damage to the suspension system and may cause personal injury.
- For vehicles with air suspension, you may need to set the suspension to “high” or “very high” settings. This allows the vehicle to be positioned and supported correctly on a vehicle lift.
- Removal (if replacing an existing shield)
- Using appropriate tools, remove the push clips (x11) that secure the front aero shield to the chin spoiler and subframe.
- On both sides of the vehicle, remove the push clip that secures the front aero shield to the wheel arch liner.
- Remove the bolts (x2) that secure the front aero shield to the front - end module. These bolts should be torqued to 3 Nm.
- Remove the bolts (x4) that secure the front aero shield to the body, also with a torque of 3 Nm.
- Remove the push clip that secures the aero shield to the body.
- Carefully lift and remove the old front aero shield from the vehicle.
- Installation of the New Aero Shield
- Place the new Front Aero Shield 1585229 - 00 - E in position under the front of the vehicle.
- Secure the shield by reinstalling the push clips (x11) to the chin spoiler and subframe.
- Install the push clips on both sides that attach the shield to the wheel arch liners.
- Insert and tighten the bolts (x2) that connect the shield to the front - end module, ensuring they are torqued to 3 Nm.
- Install and torque the bolts (x4) that attach the shield to the body to 3 Nm.
- Finally, install the remaining push clip that secures the aero shield to the body.
- Final Check
- After installation, carefully inspect the aero shield to ensure it is properly aligned and all clips and bolts are securely fastened.
- Lower the vehicle from the lift. If the vehicle has air suspension, deactivate “jack mode”.
- Take the vehicle for a short test drive to check for any unusual noises, vibrations, or handling issues.
