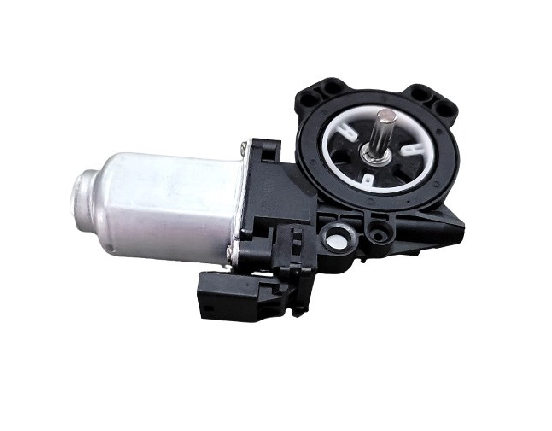

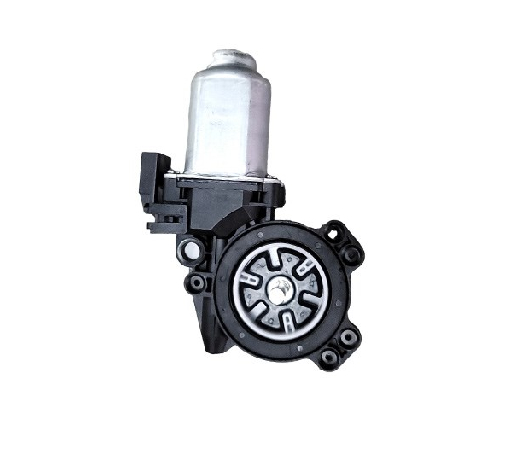

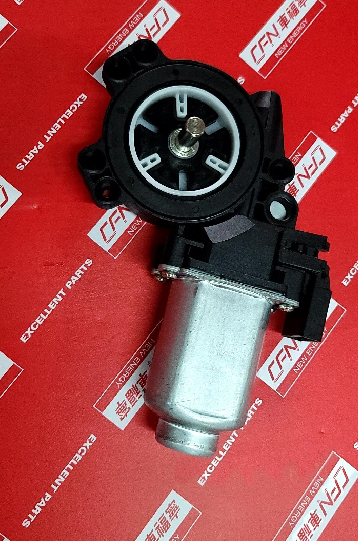

Product Description: Window Lift Motor (Front LH / Rear RH) for Tesla Model 3 (2017-2023) | 1616442-98-AMD

1. Key Specifications & Compatibility

2. Core Functions & Performance Advantages

1. Precise Driving for Smooth Operation

• Equipped with a high-torque permanent magnet motor, its output power matches the original window lift load requirements of Tesla. It drives the window glass to rise and fall at a constant speed, with no jamming or abnormal noise.
• Built-in speed control module, compatible with the vehicle’s "one-touch window up/down" and "anti-pinch function" (works with the vehicle’s ECU system). When an obstacle is detected, it automatically reverses to avoid pinching passengers or damaging the glass.

2. Durability & Environmental Adaptability

• The motor housing is made of high-strength PA6 + glass fiber composite material, which is impact-resistant and high-temperature resistant (operating temperature range: -40℃ to 85℃). It can withstand long-term high temperatures, humidity, or dust erosion inside the door.
• The internal rotor and bearings adopt precision heat treatment technology, resulting in low wear. The official design service life is ≥100,000 lift cycles (equivalent to 8–10 years of normal vehicle use).

3. OEM Compatibility for Plug-and-Play Installation

• Fully complies with Tesla Model 3’s door electrical interface and mechanical installation dimensions. The plug and mounting holes match the original vehicle 1:1, eliminating the need for wire modifications or mounting surface grinding.
• Compatible with the original vehicle’s window control system protocol. No additional programming is required after installation; it automatically adapts to the vehicle’s ECU once powered on, directly restoring window lift functionality.

3. Application Scenarios & Replacement Tips

1. Scenarios Requiring Replacement

• Significantly slower window movement, jamming, or accompanied by a "buzzing" abnormal noise (mostly due to worn motor brushes or internal gear slippage).
• Window fails to lift/lower or only operates in one direction (mostly due to motor coil failure or forward/reverse control circuit malfunction).
• "False anti-pinch trigger" or "anti-pinch failure" during window movement (requires inspection of the motor speed feedback module).

2. Installation & After-Sales Recommendations

• Professional installation is recommended. When removing the door panel, take care to protect the clips and wiring harness to avoid damaging original vehicle components.
• After installation, perform "window position calibration" (via Tesla’s on-board system or diagnostic equipment) to ensure accurate window lift travel and normal anti-pinch function.
• This product meets Tesla’s original quality standards and comes with a corresponding warranty period (subject to the supplier’s after-sales policy). For non-human damages (e.g., motor burnout, jamming) within the warranty period, free replacement is available.
