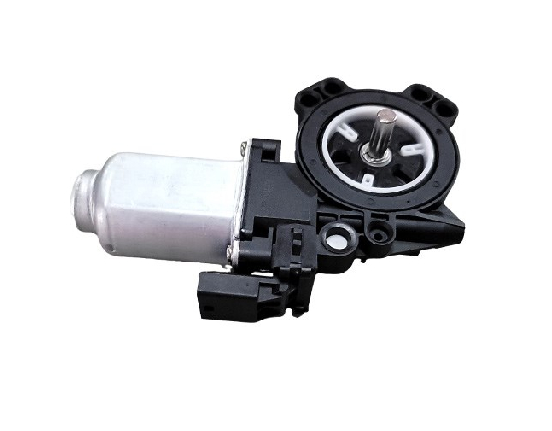

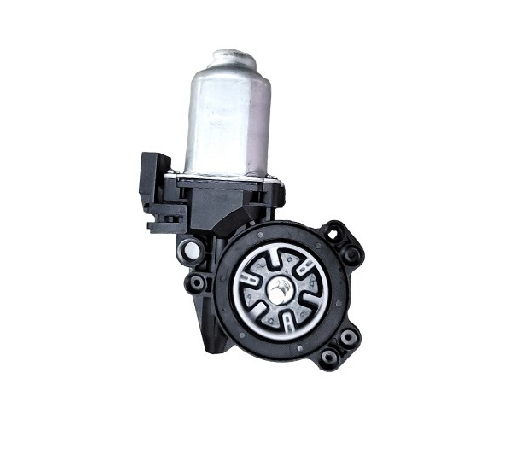

Window Lift Motor (Front RH / Rear LH) for Tesla Model 3 (2017-2023) | 1616443-99-AMD

1. Key Specifications & Compatibility

2. Core Functions & Performance Advantages

1. Smooth, Reliable Window Control

• High-Torque Output: Designed to match Tesla’s original window load requirements, the motor drives glass up/down at a consistent speed—no lag, jamming, or uneven movement, even with aged window seals.
• Anti-Pinch Sync: Integrates seamlessly with your Model 3’s ECU to support the factory anti-pinch function. If the window detects an obstacle (e.g., a hand or object), it automatically reverses to prevent injury or glass damage.
• One-Touch Compatibility: Works with Tesla’s "one-touch up/down" feature—press the switch once, and the window completes the full travel (no need to hold the button).

2. Durability Built for Long-Term Use

• Rugged Housing: Constructed from PA6+glass fiber composite material, the motor housing resists impact, warping, and high temperatures (-40℃ to 85℃). It withstands the extreme conditions inside car doors (humidity, dust, or direct sunlight).
• Wear-Resistant Internals: Precision heat-treated rotor and stainless-steel bearings reduce friction, ensuring a service life of ≥100,000 lift cycles (equivalent to 8–10 years of daily use).
• Corrosion Protection: All electrical connectors are coated with anti-corrosion material to prevent rust or short circuits from road salt or moisture.

3. OEM-Grade Fit & Plug-and-Play Installation

• 1:1 Original Dimensions: Every mounting hole, connector, and wire harness matches Tesla’s factory design—no drilling, wire cutting, or modifications required. It drops directly into your Model 3’s door assembly.
• No Programming Needed: Powers on and syncs with your vehicle’s window system automatically. No Tesla diagnostic tools or coding are required to activate functionality.

3. Signs It’s Time to Replace Your Window Lift Motor

• Window Doesn’t Respond: Pressing the switch does nothing, or the window only moves intermittently (often due to a burned-out coil or faulty wiring in the motor).
• Slow or Stuck Movement: The window takes longer than usual to rise/fall, or gets stuck halfway (caused by worn brushes or a weakened motor).
• Loud Abnormal Noises: Grinding, buzzing, or clicking sounds during operation (indicates damaged internal gears or bearings).
• Anti-Pinch Failure: The window doesn’t reverse when hitting an obstacle, or triggers false anti-pinch alerts (motor speed feedback is faulty).

4. Installation & After-Sales Tips

• Professional Installation Recommended: While the motor is plug-and-play, removing the Model 3’s door panel requires care to avoid breaking plastic clips or damaging the interior trim. We suggest a certified technician or experienced DIYer handle installation.
• Post-Install Calibration: After installation, use your Model 3’s touchscreen to perform "Window Calibration" (under Settings > Service > Window Calibration) to ensure accurate travel limits and anti-pinch function.
• Warranty Coverage: Backed by a 1-year limited warranty. If the motor fails due to manufacturing defects (e.g., coil burnout, bearing failure) within the warranty period, we offer free replacement.
