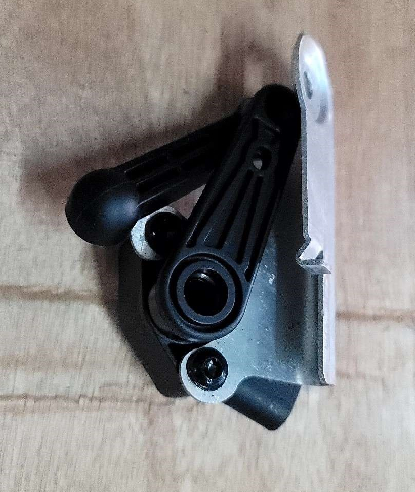

As a core "data bridge" for your Tesla Model S/X’s air suspension system, this OEM-grade height level sensor (Part No. 1027971-00-A) is engineered exclusively for 2012–2021 Model S and Model X vehicles. Mounted on the rear left (driver side) suspension assembly, it continuously tracks ride height to keep your Tesla balanced, stable, and comfortable—whether you’re hauling cargo in the trunk, navigating uneven roads, or cruising at highway speeds. A faulty sensor breaks your air suspension’s precision; this replacement restores the factory-calibrated control you depend on.
Your Tesla’s air suspension can’t deliver a smooth, level ride without accurate rear-left height data—and the 1027971-00-A sensor is how it gets that data. It performs three non-negotiable roles:
- Balances Loads: Detects if the rear left sags (e.g., from heavy luggage in the trunk or rear passenger weight) and sends data to the suspension controller. The system inflates/deflates the rear-left air spring to level the vehicle, preventing uneven tire wear and wobbly handling.
- Adapts to Road & Speed: Works with "Comfort," "Sport," and "Highway" modes—lowers the rear suspension at high speeds to cut aerodynamic drag, or raises it to clear potholes (the sensor confirms the suspension reaches the correct height).
- Protects Expensive Components: Alerts the system if the rear-left suspension is overextended (e.g., hitting a deep rut), preventing damage to air springs, struts, or control arms.
A failing sensor turns these benefits into headaches: your Model S/X may sag on the rear left, bounce uncontrollably over bumps, or trigger "Air Suspension Fault" alerts that limit speed for safety.
- Constant Height Checks: 50 times per second, the sensor uses a built-in optical disc and magnet to track how far the rear-left suspension moves up/down. It sends this data to your Tesla’s suspension computer instantly—faster than you can blink.
- Fixes Sagging: If you load cargo in the rear trunk, the sensor notices the rear left drops and tells the air spring to inflate. This keeps the car level, so your ride stays smooth and your steering doesn’t pull to one side.
- Tough Enough for All Weather: Rain, snow, salted roads, or high-pressure car washes won’t damage it. The IP6K9K rating means it handles even harsh winter grime without shorting out.
- No Guesswork: Unlike old analog sensors, this digital sensor never "drifts"—it gives accurate readings every time, so the suspension reacts instantly to changes in load or road conditions.
Don’t ignore these red flags—they mean your rear-left height sensor is failing:
- Rear Left Sagging: The rear left side sits lower than the rear right (check tire clearance above the wheel—there will be a visible gap difference).
- "Air Suspension Fault" Alert: Your touchscreen shows this warning, and the suspension may lock in "Safe Mode" (no height adjustments, limited speed).
- Unstable Ride: The rear left bounces over small bumps, or the vehicle leans heavily to the left during turns (the sensor isn’t sending accurate data to the controller).
- Driving Modes Don’t Work: The suspension won’t lower for "Highway" mode or raise for "Off-Road" mode (the sensor can’t confirm height changes).
- Random Height Changes: The rear-left air spring inflates/deflates for no reason (the sensor is sending false data to the system).
Generic height sensors cut corners on fit and calibration—this one is built for your 2012–2021 Model S/X:
- Tesla-Exact Programming: Calibrated with the exact height thresholds Tesla uses for Model S/X. No "false fault" alerts (a common issue with generic sensors that don’t match Tesla’s software).
- Perfect, Tool-Free Fit: Mounts to the rear-left suspension arm and sub-frame using factory holes—no drilling, grinding, or zip-ties. The 3-pin connector plugs directly into the original wiring harness (no wire cutting).
- Durable Build: The housing is made of glass-filled nylon (resists impact from road debris), and the connector has anti-corrosion plating (prevents rust from road salt).
- Long-Lasting Accuracy: Hall-effect technology doesn’t wear out like analog sensors—this one maintains ±0.5mm accuracy for long-term use (vs. generic sensors that drift quickly).
- 1x Rear Left (Driver Side) Air Suspension Height Level Sensor (1027971-00-A)
- 2x Pre-lubricated OEM-spec mounting bolts (torque spec matches Tesla’s service manual requirements)
- Digital Installation Guide: Step-by-step photos, how to safely lift the rear of your Model S/X (without damaging the air suspension), and tips to avoid bending the sensor’s guide rod during installation.
Note: Moderate DIY skill recommended. You’ll need a jack, jack stands, a torque wrench, and a flathead screwdriver (to disconnect the electrical connector). After installation, reset the air suspension via Tesla’s touchscreen (Settings > Service > Air Suspension Reset) to calibrate the new sensor—this ensures it syncs with your vehicle’s system.
- Warranty: Backed by a limited warranty. For details on coverage terms (e.g., duration, eligible issues), feel free to reach out.
- Technical Support: Our EV specialist team is available via email/chat to answer installation questions—we’ll help you get it right the first time.
Ready to Restore Your Tesla’s Air Suspension Performance?
This OEM-spec sensor fixes faulty rear-left height tracking, bringing back the smooth, level ride your Model S/X was built for. For inquiries about availability, customization, or to discuss options that fit your needs, please click "Contact Us" or send a message via the chat box—our team will respond promptly to assist you.
Ships worldwide with tracked delivery. For bulk orders or specific timeline requests, reach out to learn more.
Pro Tip: For balanced rear suspension performance, consider replacing both rear left and rear right sensors. Ask our team about the matching rear right sensor (Part No. 1027972-00-A) for a complete upgrade!
