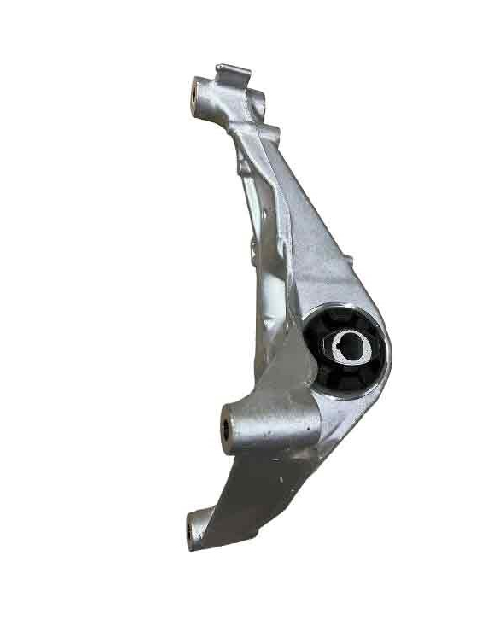

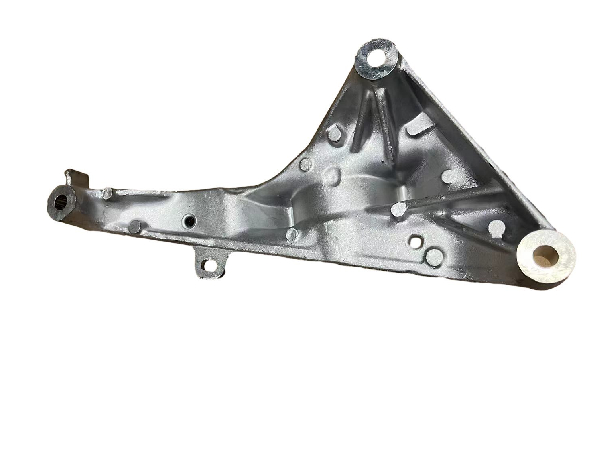

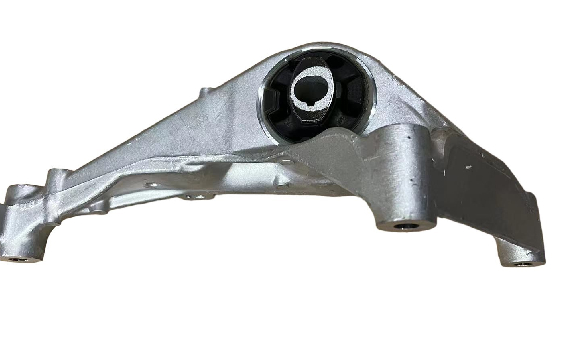

[Premium Brand-Grade] Front Left Hand Mount Assembly for Tesla Model 3/Y (2017-2023) | 1095338-00-D (3DUF Specification)

I. Core Selling Points

1. OE-Level Compatibility, Precision-Matched to Tesla Engineering Standards

• Manufactured strictly in accordance with the original factory drawings of Tesla Model 3/Y (2017-2023). Part number 1095338-00-D fully conforms to the 3DUF specification, with zero deviation in the 3-point mounting holes. No drilling or grinding is required—direct bolt-on installation avoids chassis damage caused by mismatched dimensions.
• Compatible with all configurations of Model 3/Y (Standard Range/Long Range/Performance), perfectly adapting to the front powertrain mounting needs of both front-wheel drive and all-wheel drive versions.

2. Dual-Function Integration: Structural Support + Vibration Damping

• High-Strength Structural Support: The bracket is made of cast aluminum alloy with a tensile strength of ≥320MPa and a static load capacity of 800-1000N. It firmly anchors the front drive unit to the chassis, preventing lateral displacement of the powertrain during acceleration, braking, or cornering—avoiding drive shaft wear and wire harness damage.
• Quiet Vibration Damping: Equipped with high-density EPDM rubber bushings (Shore hardness: 65±5A), which effectively absorb 10-500Hz powertrain vibrations. It reduces low-frequency hum (during highway driving) and high-frequency rattling (during low-speed startup) in the cabin, restoring the original factory-level quiet driving experience.

3. 6-Year Anti-Aging Durability, Suitable for Complex Road Conditions

• The bracket surface undergoes anodized anti-rust treatment, with a salt spray test result of ≥500 hours. It resists snow-melting salt in northern regions and rainy/humid environments in southern regions, preventing bracket rust and fracture.
• The rubber bushings are added with UV anti-aging agents, which do not harden or crack in extreme temperature ranges of -40℃ to 85℃—solving the problem that generic products need to be replaced after only 1-2 years.

II. Detailed Specifications

III. Application Scenarios & Pain Point Solutions

1. Application Scenarios

• Replacement of Aged OE Components: Direct replacement when the original front left mount assembly of Model 3/Y (with over 80,000 km mileage) has hardened bushings or rusted brackets, causing cabin noise or powertrain displacement.
• Performance Restoration After Maintenance: After front collision repair or powertrain disassembly/maintenance, it is necessary to re-match OE-level mounting accuracy to avoid subsequent failures caused by component deviation.
• Modification & Upgrade for Stability: For users with high requirements for chassis stability (e.g., frequent highway driving or complex road conditions), replacing with this premium-grade component enhances powertrain support strength and vibration control.

2. Core Pain Point Solutions

IV. Installation Instructions

1. Package Contents

• 1× Front Left Hand Mount Assembly (1095338-00-D)
• 3× High-strength mounting bolts (OE-spec, pre-coated with anti-rust coating to avoid rust jamming after installation)
• 1× Torque specification card (marking OE-recommended torque for each bolt: 28±2Nm for chassis end, 32±2Nm for powertrain end)
• 1× Digital installation manual (with step-by-step diagrams, accessible via QR code)

2. Installation Key Points

• Safety Precondition: Before installation, use a hydraulic jack + stand to support the front powertrain to prevent it from falling when removing the old assembly.
• Removal Sequence: First remove the 2 chassis-end bolts, then the 1 powertrain-end bolt—avoid hard pulling to prevent deformation and jamming of the old assembly.
• Torque Requirement: A torque wrench must be used to tighten bolts to the recommended value. Over-tightening may damage bushings, while under-tightening may cause component looseness and noise.
• Professional Advice: Users with basic automotive mechanical knowledge can install it independently (takes about 60 minutes); beginners are recommended to operate at Tesla-authorized service centers or professional EV repair shops.

V. After-Sales Guarantee

1. Warranty Service: Provides a 2-year/40,000-kilometer warranty (whichever comes first). During the warranty period, if the bracket cracks or the bushing falls off/hardens (non-human damage), a brand-new component will be reissued for free.
2. Compatibility Guarantee: If there is a model mismatch or mounting hole deviation after receipt, 7-day no-reason return/refund is supported (provided the product is uninstalled and the package is intact).
3. Technical Support: Dedicated EV technical consultants are available. If problems are encountered during installation, 图解 guidance can be obtained at any time via phone/online customer service to ensure smooth installation.

VI. Purchase Guide

1. Purchase Channels

• Official Flagship Store: [Click to jump to the official mall for purchase] (next-day delivery supported, free shipping for orders over a certain amount).
• Offline Partner Stores: Tesla-authorized maintenance partners, over 30 professional EV parts stores in cities nationwide (contact customer service to find the nearest store).
• Bulk Purchase: Bulk discounts are available for repair shops and modification stores. Contact the business customer service (Phone: XXX-XXXXXXX) for a quotation.

2. Warm Tips

• Before placing an order, confirm the vehicle model year (2017-2023 Model 3/Y); models outside this range are not compatible for the time being.
• It is recommended to replace it together with the "Front Right Hand Mount Assembly" (same specification, part number: XXX-XXX-XXXX) to ensure balanced support on both sides of the front powertrain and improve overall stability.
• After installation, a short road test (5 km each for low-speed and high-speed driving) is recommended to check for abnormal noise and ensure the component is properly installed.
