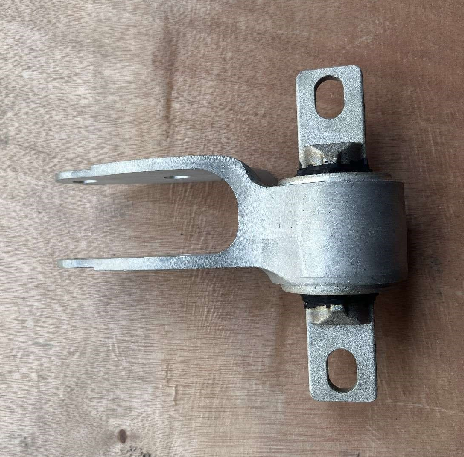

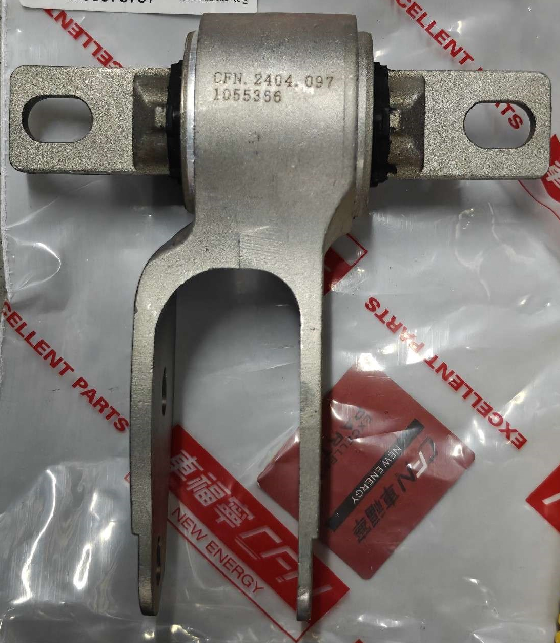

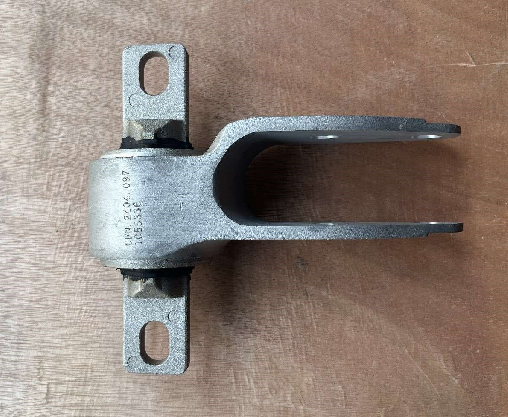

Front Left Drive Unit Arm Bracket Mount for 2012-2021 Tesla Model S/Model X | 1055366-00-H

1. Core Function Description

1. Precise Anchoring of Drive Unit: It connects the front left drive unit directly to the vehicle chassis via a 3-point positioning structure, ensuring no lateral displacement or longitudinal movement of the drive unit during acceleration, braking, or cornering. This prevents drive shaft misalignment, wire harness pulling, or coolant line leakage caused by loose components.
2. Torque Impact Absorption: The bracket integrates a high-elasticity EPDM rubber damping layer, which effectively absorbs 10-300Hz vibrations and instantaneous torque impacts (such as torque reaction force during sudden acceleration) generated by the drive unit. It reduces vibration transmission to the cabin and lowers fatigue wear of the drive unit's fixing bolts, extending the overall service life of the drive system.
3. Chassis Load Distribution: Adopting a "gradual load transfer" design, it evenly distributes the weight of the drive unit (approximately 80-100kg) to multiple stress points on the chassis, avoiding chassis deformation caused by local stress concentration and maintaining chassis stability during vehicle operation.

2. Specification Parameter Table

3. Fault Judgment (Signs for Replacement)

• Abnormal Noise from Front Chassis: A continuous "creaking" or "rattling" sound from the front left side during driving (especially when accelerating, braking, or turning), caused by worn rubber damping layers or loose bracket connections.
• Visible Damage to Bracket: The bracket body is bent, cracked, or has broken mounting tabs; the rubber damping layer is split, bulging, or detached from the bracket—these issues lead to loss of support and buffering functions.
• Drive Unit Misalignment: Uneven tire wear on the front left tire (faster wear on one side), or difficulty in steering (heavy or skewed steering feel)—caused by bracket deformation leading to drive unit displacement.
• Loose Fixing Bolts: The bolts connecting the bracket to the chassis/drive unit frequently loosen (even after re-tightening), indicating wear of the bracket's mounting holes or loss of structural stability.

4. Advantages of Premium Brand-Grade (vs. Generic Products)

5. Installation Details

5.1 Package Contents

• 1× Front left drive unit arm bracket (1055366-00-H)
• 3× High-tensile fixing bolts (matches Tesla original specifications, pre-coated with anti-seize compound to prevent thread galling)
• 1× Torque specification card (recommended torque: 35±3Nm for chassis bolts, 40±3Nm for drive unit bolts—complies with Tesla service manual standards)
• 1× Silicone grease packet (for lubricating the rubber damping layer, reducing friction and extending service life)

5.2 Installation Tools Required

• Torque wrench (range: 0-100Nm, for precise bolt tightening)
• Socket set (10mm, 13mm—matches the size of fixing bolts)
• Hydraulic jack + jack stands (for supporting the front chassis and drive unit during installation)
• Wire brush (for cleaning rust/debris on chassis mounting points before installation)

5.3 Installation Precautions

1. Safety Preparation: Before disassembling the old bracket, use a hydraulic jack to lift the front left side of the vehicle and secure it with jack stands—never rely solely on the jack to avoid safety risks.
2. Disassembly Sequence: First remove the 2 bolts connecting the bracket to the chassis, then the 1 bolt connecting it to the drive unit; do not pull the bracket forcefully to prevent damage to adjacent components (e.g., coolant lines).
3. Cleaning Step: Use a wire brush to clean rust, oil, or debris from the chassis and drive unit mounting points—ensure the new bracket fits tightly without gaps.
4. Torque Control: Use a torque wrench to tighten bolts to the recommended values; over-tightening may deform the bracket, while under-tightening causes looseness and noise.

6. After-Sales Support

• Warranty Service: Provides a 3-year/60,000-kilometer warranty (whichever comes first). During the warranty period, if the bracket is bent/cracked (non-human damage) or the rubber layer fails prematurely, a free replacement will be provided.
• Technical Assistance: Dedicated EV technicians are available via email or online chat to answer installation questions (e.g., drive unit positioning, torque verification) and provide troubleshooting guidance for post-installation issues.
• Compatibility Guarantee: If the bracket is incompatible with your 2012-2021 Model S/Model X (confirmed via VIN check), 7-day no-reason return is supported (provided the product is uninstalled and packaging is intact).

7. Conversion Guidance
