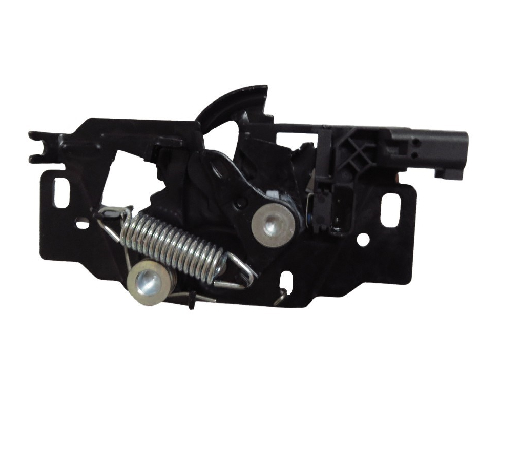

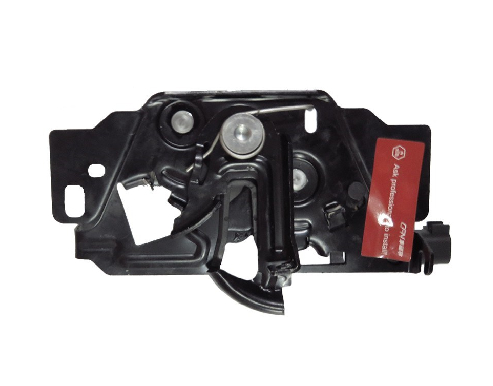

HOOD LATCH FOR TESLA MODEL S (-2021) | 6006601-00-B & 1033011-00-G

1. Core Function & System Integration

• Dual-Layer Security: Combines a primary latch (6006601-00-B) for 日常锁定 and a secondary latch (1033011-00-G) as a fail-safe mechanism to prevent hood opening during driving . This design addresses a 2022 NHTSA recall where misaligned secondary latches posed risks .
• Electronic-Mechanical Synergy:
  • Activates via touchscreen, key fob, or mobile app (primary release).
  • Includes a manual override (under the front bumper) for low-voltage emergencies Tesla Model S.
  • Communicates with the BCM to trigger dashboard alerts (e.g., "Hood Ajar") and disable Autopilot if unsecured Tesla.
• Vibration Resistance: Precision-engineered to withstand high-frequency vibrations, ensuring no unintended releases during acceleration or rough terrain teslaacessories.com.

2. Specification Comparison

3. Fault Diagnosis & Replacement Triggers

• Hood fails to latch securely after multiple attempts, or pops open while driving .
• Dashboard alerts persist (e.g., "Hood Latch Malfunction") despite repeated resets Tesla.
• Manual override is stuck or requires excessive force Tesla Model S.
• Visible misalignment between the hood and fenders, indicating latch displacement Tesla.

• Worn gears in the secondary latch (1033011-00-G) due to corrosion .
• Loose wiring in the primary latch (6006601-00-B) connector Tesla.

4. Installation & Maintenance

Step-by-Step Guide

1. Pre-Installation:
   • Disconnect the 12V battery to avoid electrical shorts Tesla.
   • Remove the front underhood apron and frunk assembly (6x 10mm bolts, 12 Nm) Tesla.
2. Removal:
   • Mark the latch position with paint for precise alignment Tesla.
   • Unbolt the latch (2x 10mm bolts, 9 Nm) and disconnect the wiring harness Tesla.
   • Release cables by compressing clips on both latches Tesla.
3. Installation:
   • Apply Rheo Gel TEK 676 grease to contact points for smooth operation Tesla.
   • Torque bolts to 8–10 Nm, ensuring alignment with factory witness marks Tesla.
   • Reconnect cables and test both electronic and manual releases Tesla.
4. Post-Installation:
   • Verify hood alignment and secondary latch engagement via touchscreen Tesla.
   • Reset BCM settings using Tesla’s diagnostic tool if errors persist .

Tools Required

• Torx T20/T15 screwdrivers, 10mm socket wrench, electrical connector release tool Tesla.
• Torque wrench (8–10 Nm range) Tesla.

5. Advantages Over Aftermarket Alternatives

6. Warranty & Recall Support

• 6006601-00-B: Covered by Tesla’s 4-year/50,000-mile warranty Tesla.
• 1033011-00-G:
  • Recall Status: Affected vehicles (VINs: 2014–2021 Model S) qualify for free replacement at Tesla service centers .
  • Warranty: 3-year/50,000-mile warranty for non-recall replacements Tesla.

7. Critical Maintenance Tips

1. Lubrication: Apply silicone-based grease quarterly to prevent freezing in cold climates Tesla.
2. Alignment Checks: Ensure the hood sits flush with fenders; misalignment voids warranties Tesla.
3. Software Updates: Keep the vehicle’s firmware current to optimize latch-BCM communication .
