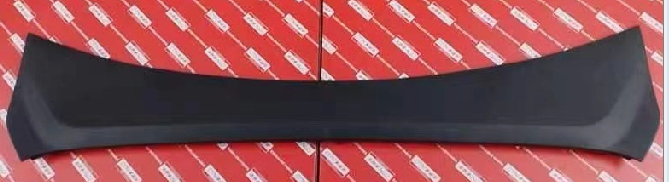

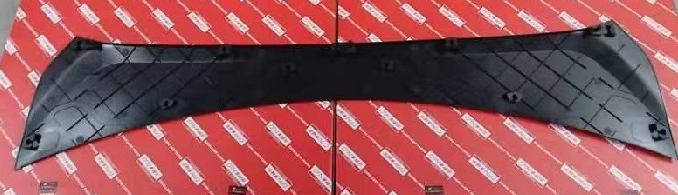

Frunk Apron - Rear for Tesla Model X (2015-2021) | 1616970-00-B (CFN Brand)

1. Basic Information

2. Core Selling Points

• OEM-Precise Fit: Laser-measured to match Tesla’s original frunk apron dimensions (length: 1,220mm ±2mm, width: 180mm ±1mm) and mounting hole patterns. Directly bolts to factory attachment points on the front frame and frunk panel—no modifications (drilling/trimming) needed, ensuring flush alignment with the frunk lid.
• Structural Durability: Reinforced rib design at stress points (e.g., lid hinge mounting areas) enhances load-bearing capacity (supports up to 25kg, matching OEM standards). Resists bending or cracking from frunk lid repeated opening/closing or minor front impacts.
• All-Weather Protection: The PP plastic material is water-resistant and UV-stabilized. It forms a tight seal with the frunk lid and front frame, preventing rainwater, road salt, or dust from entering the under-hood area—protecting sensitive components from corrosion or clogging.
• Easy Installation: Pre-drilled mounting holes align with Tesla’s factory bolts (10mm socket compatible). Can be installed by aligning with the front frame, securing bolts to 7±1 Nm torque, and verifying frunk lid closure smoothness—no specialized tools required.

3. Key Specs & Installation Tips

• Key Specifications: Material: OEM-grade PP plastic; Dimensions: 1,220mm (length) × 180mm (width) × 45mm (height); Temperature resistance: -35°C to 90°C; Load-bearing capacity: ≥25kg; Service life: ≥7 years (under normal use).
• Installation Tips: 1. Ensure the vehicle is parked on a flat surface; open the frunk and remove the original apron by detaching 6 factory bolts (10mm socket); 2. Clean the front frame mounting area to remove dust/debris; 3. Align the new CFN apron with the mounting holes, secure bolts to 7±1 Nm torque; 4. Close and open the frunk lid repeatedly to check for smooth operation—adjust bolt tightness slightly if lid sticks.
• Compatibility Note: This apron is exclusive to 2015-2021 Model X; 2022+ Model X has a revised frunk design—confirm your vehicle’s model year before purchase.

4. After-Sales & Bulk Support

• Warranty: 2-year warranty (covers manufacturing defects such as cracking, warping, or misaligned holes; excludes damage from collisions, improper installation, or frunk overloading).
• Bulk Offers: Orders of ≥8 pieces get 12% discount; bulk buyers (e.g., repair chains) receive free technical support (installation guide PDF, fit verification tips) and flexible delivery schedules.
• Maintenance Tip: Inspect the apron quarterly for cracks or loose bolts—tighten bolts promptly if loose, and replace the apron if cracks appear to avoid compromising under-hood protection.
