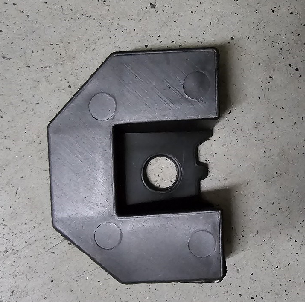

Bracket, Rear Bumper Lower Center, RH for Tesla Model S (2021-) | 1614075-00-A (CFN Brand)

1. Basic Information

2. Core Selling Points

• OEM-Precise Fit: Precision-stamped using Tesla’s original design data, with dimensions (length: 130mm±1mm, width: 35mm±0.5mm, thickness: 3.5mm) and mounting hole positions identical to factory parts. Directly aligns with rear subframe and bumper bolt points—no drilling, bending, or trimming required for stable installation.
• Durable Anti-Corrosion: Galvanized steel base forms a primary rust barrier, while the black electrophoretic coating adds secondary protection. Passes 800-hour salt spray tests (ASTM B117) without rust, peeling, or discoloration, suitable for coastal, snowy, or high-humidity regions.
• Reinforced Load-Bearing: Cross-ribbed structure at stress points (e.g., bumper attachment areas) supports up to 45kg (matching OEM standards), resisting bumper weight and road debris impact to prevent sagging or deformation during daily use.
• Tool-Simple Installation: Pre-drilled M6-compatible holes fit Tesla’s factory hardware. Install with a standard 10mm socket, tighten bolts to 10±1 Nm (per Tesla’s torque specs), and complete installation in 15–20 minutes—no specialized tools needed.

3. Key Specs & Installation Tips

• Key Specifications: Material: Galvanized steel + electrophoretic coating; Dimensions: 130mm (length) × 35mm (width) × 3.5mm (thickness); Tensile strength: ≥380MPa; Temperature resistance: -40°C to 130°C; Service life: ≥10 years (under normal use).
• Installation Steps: 1. Lift the vehicle and secure it with jack stands (focus on rear subframe support points); 2. Remove the rear underbody splash guard using a trim tool (avoid scratches); 3. Detach 3 factory bolts (10mm socket) to remove the old RH bracket, then clean the mounting surface of rust/debris; 4. Align the new CFN RH bracket with bolt holes, tighten bolts to 10±1 Nm; 5. Reinstall the splash guard, lower the vehicle, and check if the bumper’s lower section sits flush with the body.
• Critical Note: Exclusive to 2021+ Tesla Model S (pre-2021 models use incompatible designs). This is an RH-specific bracket—do not mix with LH (Left-Hand) brackets (part number 1614074-00-A).

4. After-Sales & Bulk Support

• Warranty: 4-year warranty (covers manufacturing defects such as rust, bending, or misaligned holes; excludes damage from collisions, over-tightening bolts, or off-road use).
• Bulk Offers: Orders of ≥20 pieces enjoy 18% discount; bulk buyers (e.g., repair chains) receive free installation guides (PDF/video) and flexible delivery schedules.
• Maintenance Tip: Inspect every 6 months for loose bolts or rust spots—tighten bolts promptly if loose; clean with a dry cloth to remove road salt/debris (avoid abrasive cleaners that damage the anti-corrosion coating).
