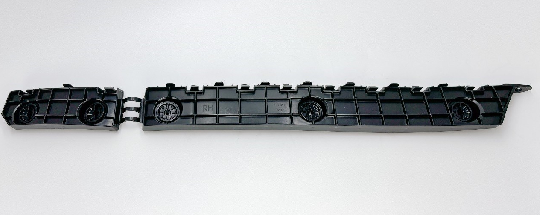

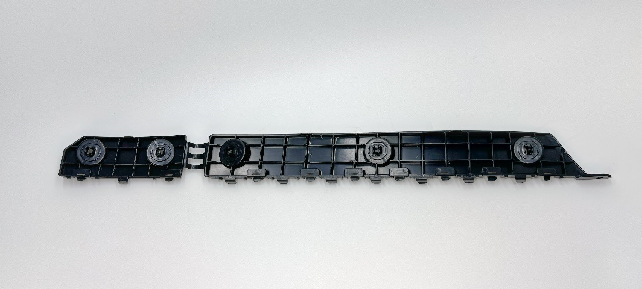

Bracket, Rear Bumper Outer Mounting, RH for Tesla Model S (2021-) | 1585738-00-B (CFN Brand)

1. Basic Information

2. Core Selling Points

• OEM-Exact Fit: Precision-stamped using Tesla’s original CAD data, with dimensions (length: 115mm±1mm, width: 42mm±0.5mm, thickness: 4mm) and mounting hole positions identical to factory parts. Directly aligns with rear fender and frame bolt points—no drilling, bending, or trimming required, ensuring seamless bumper-to-fender alignment.
• Heavy-Duty Anti-Corrosion: Galvanized steel base forms a rust-resistant underlayer, while the black powder coating adds scratch and weather protection. Passes 900-hour salt spray tests (ASTM B117) without rust, peeling, or fading—suitable for long-term use in coastal, snowy, or high-humidity regions.
• Reinforced Impact Resistance: Triangular reinforced structure at the bumper-fender connection point enhances load-bearing capacity (supports up to 50kg, matching OEM standards). Effectively absorbs side impact force (e.g., minor collisions with curbs) and reduces bumper vibration during driving, preventing outer edge sagging or deformation.
• Quick Installation: Pre-drilled M8-compatible mounting holes fit Tesla’s factory hardware. Install with a 13mm socket, tighten bolts to 12±1 Nm (per Tesla’s factory torque specs), and complete installation in 20–25 minutes—no specialized tools needed.

3. Key Specs & Installation Tips

• Key Specifications: Material: Galvanized steel + black powder coating; Dimensions: 115mm (length) × 42mm (width) × 4mm (thickness); Tensile strength: ≥400MPa; Temperature resistance: -40°C to 140°C; Service life: ≥12 years (under normal use).
• Installation Steps: 1. Open the rear trunk, use a trim tool to remove the rear fender inner trim panel (avoid scratches) to access the outer bumper mounting area; 2. Detach 4 factory bolts (13mm socket) to remove the old RH bracket, then clean the mounting surface of rust or debris; 3. Align the new CFN RH bracket with fender and frame bolt holes, tighten bolts to 12±1 Nm; 4. Reinstall the inner trim panel, close the trunk, and check if the rear bumper’s outer edge sits flush with the fender.
• Critical Note: Exclusive to 2021+ Tesla Model S (pre-2021 models have a revised rear bumper/fender design and use incompatible brackets). This is an RH-specific part—do not mix with LH (Left-Hand) outer mounting brackets (part number 1585737-00-B).

4. After-Sales & Bulk Support

• Warranty: 5-year warranty (covers manufacturing defects such as rust, bending, misaligned holes, or coating peeling; excludes damage from collisions, over-tightening bolts, or off-road use).
• Bulk Offers: Orders of ≥18 pieces enjoy 20% discount; bulk buyers (e.g., repair chains, dealerships) receive free technical support (installation videos, torque verification guides) and customized delivery schedules.
• Maintenance Tip: Inspect annually for loose bolts or coating damage—tighten bolts promptly if loose; clean with a damp cloth to remove road salt or debris (avoid abrasive cleaners that scratch the powder coating).
