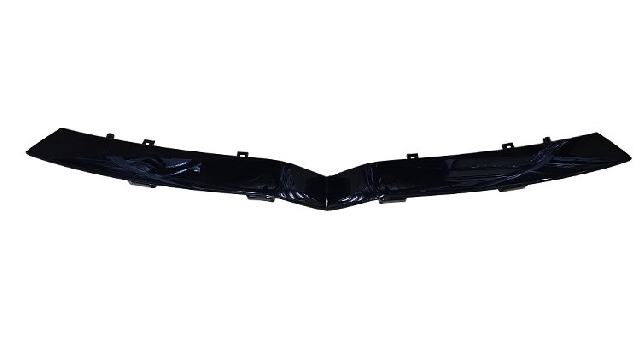

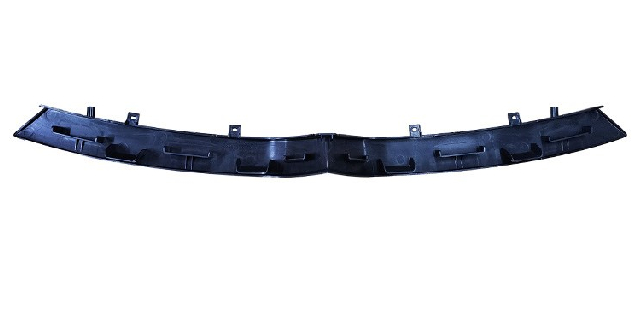

Front Bumper Grille Molding Trim for 2021+ Tesla Model X | 1617074-00-C (CFN Brand)

1. Edge Protection & Structural Reinforcement: Covers and reinforces the front bumper grille’s outer edges, preventing cracking or deformation from minor front scrapes (e.g., brushing against branches, small road obstacles) and reducing wear on the grille’s edge seams over long-term use.
2. Aesthetic Cohesion: The trim’s shape, surface finish, and dimensions match the Model X’s factory grille design exactly—eliminating gaps between the grille and bumper, and creating a smooth, unified front-end look that avoids the disjointed appearance of generic aftermarket trims.
3. Component Stability: Acts as a “bridge” between the grille and front bumper, securing the grille’s position to prevent slight shifting from road vibration (ensuring the grille stays aligned with the bumper’s air intake opening for consistent airflow).

• Structural Durability: The ABS plastic has a tensile strength of ≥280MPa, resisting impact from small debris and avoiding brittle cracking in low temperatures; it withstands extreme temperature fluctuations (-35°C to 90°C), making it suitable for snowy winters, coastal high-humidity areas, or high-temperature summers.
• Weather & Wear Resistance: Passes 500-hour ASTM G154 UV tests to prevent fading or discoloration, and resists chemical corrosion from road salt, car wash cleaners, or rain—ensuring long-term color consistency with the front bumper and grille.
• Surface & Edge Quality: The matte finish matches the Model X’s factory grille texture, while the trim’s edges are smooth (no burrs) to avoid scratching the grille or bumper during installation.

1. Open the frunk and use a trim tool to gently peel back the front bumper’s upper inner trim panel (apply even force to avoid breaking plastic clips).
2. Locate the old grille molding trim—it runs along the upper edge of the front bumper grille, secured by 4 plastic snap clips and 2 small factory bolts (7mm socket).
3. Detach the snap clips (use the trim tool to press the clip tabs) and remove the 2 bolts, then pull the old trim away from the grille edge.
4. Clean the grille’s edge mounting surface with a dry cloth to wipe away dust, debris, or residual adhesive—ensuring a tight fit for the new trim.
5. Align the CFN molding trim with the grille’s upper edge, snap the plastic clips into place (you’ll hear a “click” when secure), then tighten the 2 bolts to 3±0.2 Nm (per Tesla’s official torque specs—over-tightening may damage the trim’s plastic base).
6. Reattach the upper inner trim panel, close the frunk, and check from the front to confirm the trim is flush with the grille and bumper, with no gaps or loose areas.
