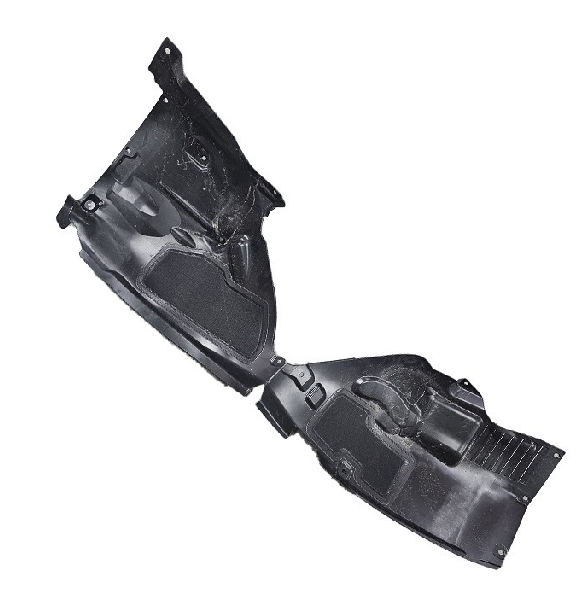

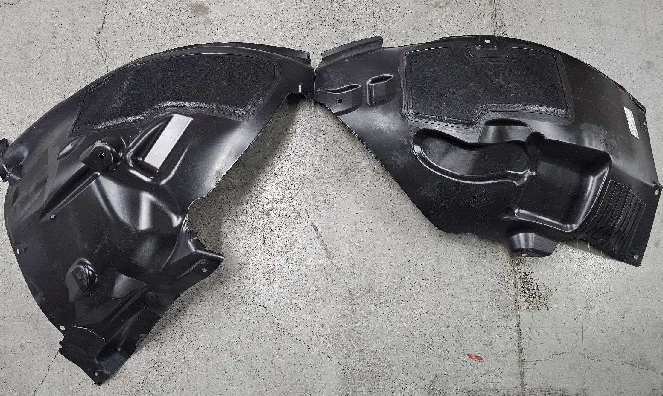

Front Right-Hand (RH) Wheel Liner for 2021+ Tesla Model X | 1585129-00-C (CFN Brand)

1. Critical Component Shielding: Acts as a robust barrier between the front right wheel well and key underbody parts (e.g., front suspension links, brake hoses, wiring harnesses, and cooling system pipelines), preventing damage from road debris (gravel, stones, sharp debris) kicked up by the right front wheel during driving.
2. Debris & Corrosion Prevention: Blocks mud, rainwater, and road salt from splashing into the wheel well and underbody cavity—avoiding corrosion of metal components (such as suspension bolts, brake caliper brackets, and frame rails) and reducing the risk of water-induced short circuits in nearby wiring.
3. Aerodynamic & Noise Control: Follows Tesla’s factory aerodynamic engineering to guide airflow around the right front wheel, minimizing wind resistance (supporting the vehicle’s energy efficiency, especially during high-speed driving) and reducing road noise caused by airflow turbulence in the wheel well.

• Impact & Durability: The PP material has a notched impact strength of ≥5kJ/m², resisting cracking from impacts with small stones or minor curb contact; the reinforced ribs enhance structural rigidity, preventing deformation even under long-term pressure from wheel vibration or road irregularities.
• Extreme Environment Adaptability: Withstands extreme temperature fluctuations (-30°C to 85°C)—remaining flexible in snowy winters (no brittle cracking) and stable in high-temperature summers (no softening or warping); it also resists UV fading (passes 400-hour ASTM G154 UV tests) and chemical corrosion from road salt, car wash detergents, or rain.
• Precision Fit: The liner’s edge contours, mounting holes, and snap-clip positions are 1:1 matched to the Model X’s factory wheel well, ensuring seamless alignment with the front bumper and fender—eliminating gaps that could allow debris to leak into the underbody.

1. Lift the front right side of the vehicle and secure it with jack stands (ensure stable support to avoid safety risks); remove the front right wheel to access the wheel well easily.
2. Use a trim tool to gently detach the plastic snap clips and bolts securing the old wheel liner to the front fender, bumper, and underbody frame—note the position of each fastener (typically 8–10 total: 5 plastic clips and 5 8mm bolts) to avoid misplacement.
3. Pull the old liner away from the wheel well, taking care not to damage adjacent components (e.g., fender trim or brake lines); clean the wheel well’s mounting surface with a dry cloth to remove dust, mud, or residual adhesive.
4. Align the CFN wheel liner with the wheel well’s mounting points, ensuring its edges fit snugly against the fender and bumper; snap the plastic clips into place (listen for a “click” to confirm security), then tighten the 8mm bolts to 4±0.3 Nm (per Tesla’s official torque specs—over-tightening may crack the liner’s plastic mounting tabs).
5. Reinstall the front right wheel, lower the vehicle, and inspect the wheel well from the side to confirm the liner is flush with the fender and bumper, with no loose areas or gaps that could allow debris entry.
