EXT MIRROR ASSEMBLY-CHRDEL-EC-EXP-LEFT HAND FOR TESLA MODEL 3(2021+) 1592033-00-C

Name: EXT MIRROR ASSEMBLY-CHRDEL-EC-EXP-LEFT HAND FOR TESLA MODEL 3(2021+) 1592033-00-C
Brand: Guangzhou Fuheng Auto Parts Supply Chain Co., Ltd.
SKU: 1592033-00-C
Availability: InStock

Brand Name:	CFN
Model Number:	1592033-00-C
MOQ:	1
Price:	Negotible
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Color:

Black

Compatibility:

Universal

Material:

Plastic

Durability:

High

Highlight:

Tesla Model 3 exterior mirror assembly

left-hand mirror for Tesla Model 3

EV car mirror replacement part

Product Description

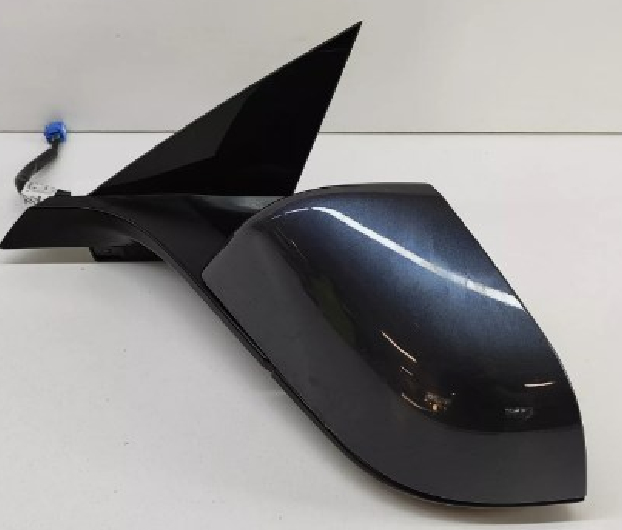

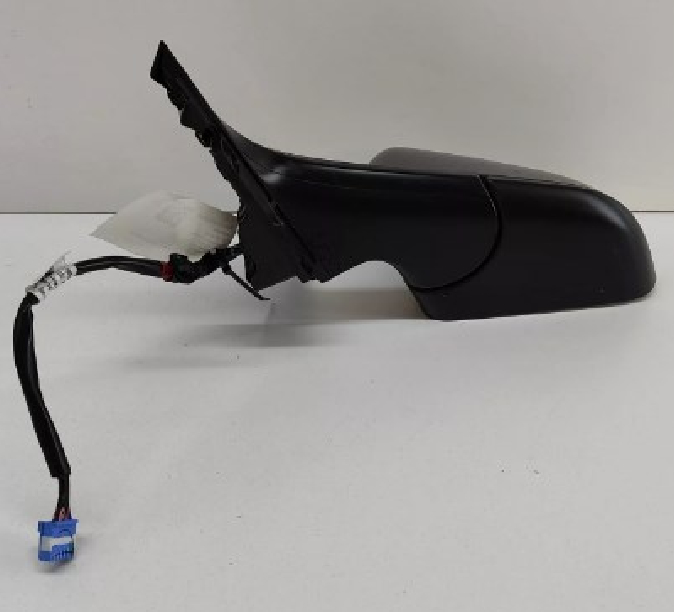

EXT MIRROR ASSEMBLY-CHRDEL-EC-EXP-LEFT HAND FOR TESLA MODEL 3(2021+) 1592033-00-C

Left-Hand (LH) Exterior Mirror Assembly for 2021+ Tesla Model 3 | 1592033-00-C (Chrome Delete)

Designed exclusively for 2021 and later facelifted Tesla Model 3 (covering RWD, AWD, and Performance variants), this left-hand (LH) exterior mirror assembly (part number 1592033-00-C) features a "Chrome Delete" design--replacing traditional chrome trim with a sleek, color-matched finish to align with modern minimalist aesthetics. As an OEM-matching replacement, it integrates all factory-standard functions, perfectly fitting the Model 3's front door mounting points and electrical system, ensuring seamless compatibility without additional modifications.

Core Functions & User Benefits

Full Electric Control for Convenience

Electric Folding: Syncs with the vehicle's central control (via key fob, touchscreen, or lock button) to automatically fold/unfold--ideal for narrow parking spaces or car washes, preventing mirror damage.
Electric Lens Adjustment: Precise 10-way adjustment (up/down/left/right) via the in-car touchscreen, ensuring optimal rearview visibility for drivers of all heights.
Memory Function: Stores 2-3 driver-specific mirror positions; switches automatically when the driver profile is changed, eliminating repeated adjustments.

All-Weather Practicality

Heated Lens: Activates automatically in low temperatures (≤5°C) or manually via the touchscreen to defog/defrost--maintaining clear visibility in rain, snow, or fog.
Auto-Dimming (Optional): For models equipped with auto-dimming, the lens reduces glare from rear-facing headlights at night, reducing eye fatigue and improving driving safety.
Reverse Auto-Tilt: When shifting to reverse, the mirror tilts downward slightly to show the rear wheel and curb--helping avoid scratches when parking or backing up.

Chrome Delete Aesthetics & Durability

Sleek Color-Matched Finish: The "Chrome Delete" design removes shiny chrome trim, replacing it with a matte or glossy finish that matches the Model 3's body color (available in standard colors like Solid Black, Deep Blue Metallic, etc.), enhancing the vehicle's cohesive, premium look.
Scratch-Resistant Coating: The mirror housing is coated with anti-scratch clear paint (hardness ≥3H), resisting minor scratches from road debris or accidental contact.

Premium Construction for Longevity

Component	Material & Feature
Mirror Housing	ABS plastic with UV-resistant coating—resists fading, cracking, or warping even after 2,000 hours of sun exposure.
Lens	High-transparency PC material with anti-glare and water-repellent coating—beads water in rain for clear visibility.
Internal Motor	Copper-core permanent magnet motor—quiet operation (≤45dB) and long lifespan (≥80,000 folding cycles).
Electrical Harness	13-pin OEM-spec connector—plug-and-play with the Model 3's CAN bus system, no error codes or electrical malfunctions.

Easy Installation & Compatibility Notes

Installation Steps (Professional Recommended)

Prepare the Vehicle: Turn off the Model 3, disconnect the 12V battery (to avoid short circuits), and remove the left front door's inner panel (use a trim tool to detach plastic clips).
Remove the Old Mirror: Disconnect the electrical connector from the back of the old mirror, then remove the 3 mounting bolts (10mm socket) and pull the mirror away from the door.
Install the New Mirror: Align 1592033-00-C with the door's mounting holes, secure with the included bolts, and reconnect the electrical connector.
Test Functions: Reconnect the battery, power on the vehicle, and verify all functions (folding, adjustment, heating, memory) via the touchscreen.

Compatibility Tips

Fitment: Only for 2021+ facelifted Model 3--pre-2021 models have different mounting points and electrical interfaces, so do not interchange.
Optional Features: For models without auto-dimming, the mirror will retain basic functions (folding, adjustment, heating) without compatibility issues.
Mirror Cover: The assembly includes the housing but not the mirror cover--reuse the original cover or purchase a matching one for full color consistency.
