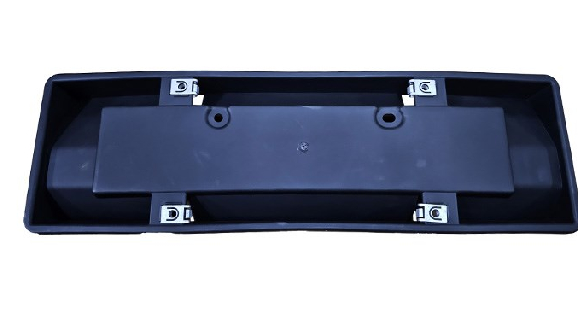

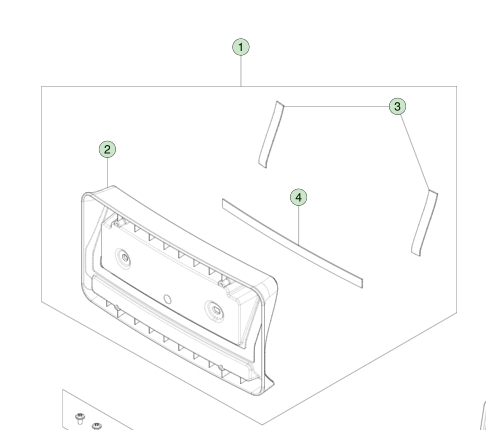

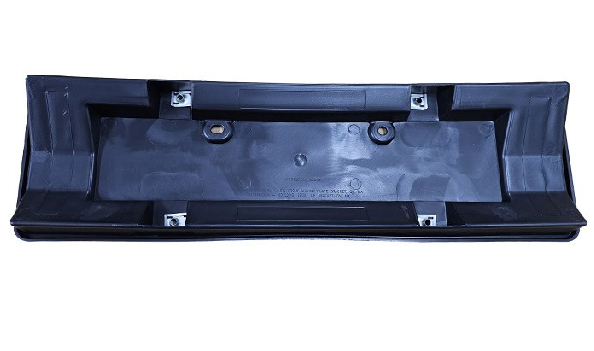

Front License Plate Bracket (CN-Spec) Assembly for 2021+ Tesla Model X | 1657298-00-A (CFN Brand)

1. Regulatory Compliance: Designed to meet China’s road traffic safety requirements, providing a legal, fixed mounting position for the front license plate—avoiding fines or inspection issues caused by improper plate installation (e.g., temporary adhesive mounts or mismatched brackets).
2. Stable Plate Fixing: Features pre-drilled mounting holes (aligned with Chinese license plate screw positions) and a reinforced base, ensuring the license plate stays securely attached even during high-speed driving or road vibration—preventing plate loosening, warping, or falling off.
3. Aesthetic & Structural Protection: The bracket’s contour matches the Model X’s front bumper curve, creating a smooth transition between the plate and bumper to avoid visual awkwardness; it also acts as a buffer between the metal license plate and plastic bumper, preventing scratches or paint damage to the bumper from plate edges.

• Structural Durability: The ABS plastic has a tensile strength of ≥280MPa, resisting deformation from low-speed front scrapes (e.g., brushing against road obstacles) or long-term exposure to external forces; it withstands extreme temperature fluctuations (-30°C to 85°C), suitable for China’s diverse climates (from cold northern winters to hot southern summers).
• Weather & Corrosion Resistance: Passes 500-hour ASTM G154 UV tests to prevent fading or discoloration, and resists chemical corrosion from road salt (in northern winter de-icing scenarios), car wash cleaners, or rain—ensuring long-term consistency with the front bumper’s appearance.
• Precision Fit: The bracket’s mounting points (including snap clips and bolt holes) are 1:1 matched to the Model X’s front bumper factory positions, requiring no drilling or modification to the bumper—avoiding damage to the vehicle’s original structure.

1. Open the frunk and use a trim tool to gently clean the front bumper’s license plate mounting area—wipe away dust, debris, or residual adhesive to ensure a tight fit.
2. Locate the factory mounting points on the front bumper (3 pre-set snap clip slots and 2 threaded holes); align the CFN bracket with these points, ensuring the bracket’s license plate mounting holes face outward.
3. Snap the bracket’s plastic clips into the bumper’s clip slots (you’ll hear a “click” when secure), then use an 8mm socket to fasten 2 bolts through the bracket’s base into the bumper’s threaded holes—tighten to 3±0.2 Nm (per Tesla’s official torque specs; over-tightening may crack the bracket’s plastic base).
4. Place the Chinese standard license plate onto the bracket, align the plate’s holes with the bracket’s pre-drilled holes, and secure the plate with standard license plate screws (not included with the bracket).
5. Close the frunk and stand in front of the vehicle to check: confirm the bracket is flush with the bumper, the license plate is level (no tilting), and there are no gaps or loose areas between the bracket and bumper.
