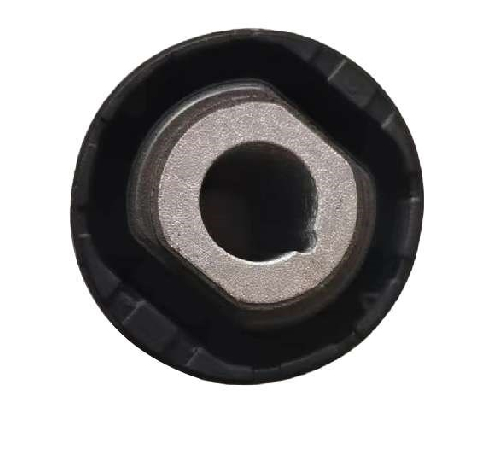

Name: Tesla Model 3/Y Rear Subframe Bushing 10x9x9cm Black EPDM Rubber
Brand: Guangzhou Fuheng Auto Parts Supply Chain Co., Ltd.
SKU: 1188551
Availability: InStock

Home > products > >

Tesla Model 3/Y Rear Subframe Bushing 10x9x9cm Black EPDM Rubber

Tesla Model 3 rear subframe bushing

Tesla Model Y front bushing

EV car subframe bushing with warranty

Place of Origin:

China

Brand Name:

CFN

Model Number:

1188551

Request A Quote

Tesla Model 3/Y Rear Subframe Bushing 10x9x9cm Black EPDM Rubber

Product Details

Size:

10*9*9

Material:

Composite Materials

Color:

Black

Durability:

High

Weight:

0.27KG

Highlight:

Tesla Model 3 rear subframe bushing

Tesla Model Y front bushing

EV car subframe bushing with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotible

Packaging Details

10*9*9 one piece,Box

Delivery Time

5-10 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Tesla Model 3/Y Rear Subframe Bushing 10x9x9cm Black EPDM Rubber

Get Best Price

Tesla Model S 2012-2016 Air Compressor 42x31x22cm 5.3kg

Get Best Price

Tesla Model 3/Y Rear Motor Bushing 7x6x6 Composite Black/White

Get Best Price

Tesla Model 3 Y Front Motor Bushing 7x6x6 Black Composite

Get Best Price

Contact Now

Product Description

Rear Subframe Front Anterior Bushing for 2017–2023 Tesla Model 3/Model Y | 1188551 (CFN Brand)

This rear subframe front anterior bushing (part number 1188551) is an OEM-matching suspension component for 2017–2023 Tesla Model 3 and 2020–2023 Model Y (all variants: RWD/AWD/Performance). As a left/right universal part, it installs at the rear subframe’s front connection point, linking the subframe (integrating rear suspension, motor, and driveshaft) to the vehicle body—aligning with Tesla’s original suspension geometry and NVH standards.

Its core roles are threefold: First, subframe positioning—it locks the rear subframe in factory-calibrated position, preventing displacement from bumps or torque changes, which maintains rear wheel alignment (toe/camber) and avoids uneven tire wear or braking lag. Second, vibration damping—made of high-elastic EPDM rubber, it absorbs low-frequency vibrations from rough roads and blocks drivetrain noise, preserving the Model 3/Y’s quiet ride. Third, impact buffering—it cushions impacts between the rigid subframe and body, reducing mechanical stress and extending component life.

Crafted for durability: The EPDM rubber has a compression set ≤12% (72h/100°C) to resist cracking or hardening. Its galvanized carbon steel inner sleeve (tensile strength ≥380MPa) and outer ring ensure stability under loads, while withstanding -40°C to 120°C temperatures and road salt corrosion.

Installation (45–60 mins, professional tools needed):

Lift the rear vehicle, remove the underbody splash guard and rear wheel.

Use an 18mm socket to remove the bushing’s securing bolt; use a press tool to extract the old bushing (avoid forcing it to prevent subframe damage).

Clean the mounting hole, apply OEM rubber lubricant to the new bushing’s outer ring, then press it into place.

Reinstall the bolt, torque to 55±3 Nm, then refit the wheel and splash guard.

Road-test for abnormal noises and check alignment if needed.

Note: Pair replacement (left/right) is recommended for consistent performance; avoid petroleum-based lubricants that harm EPDM rubber.
